Cargo Aircraft

Boeing 747-400ERF

N663CA

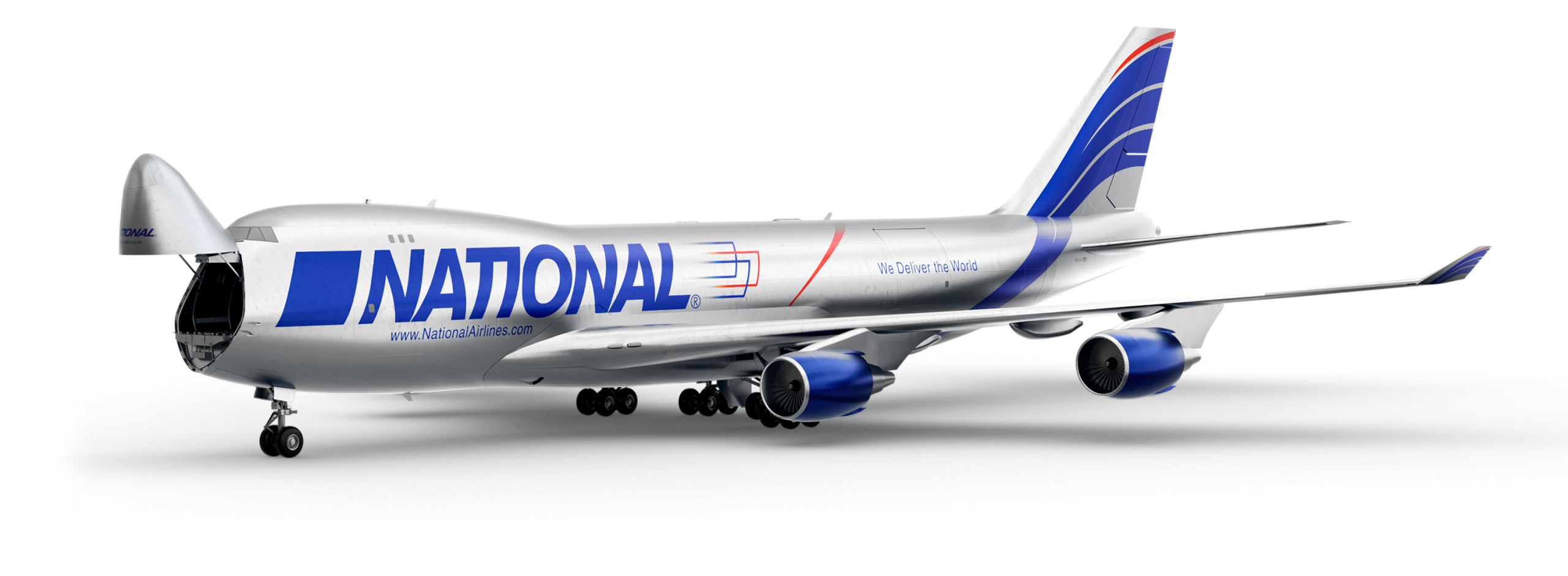

Three ways to load it. Including one most freighters don’t have. The 747-400ERF opens at the nose for the cargo that won’t clear a conventional door. 125 metric tons of payload, 665 cubic meters of volume, and the range to deliver across five continents nonstop.

Download Specs

Eyebrow Label

Eyebrow Label

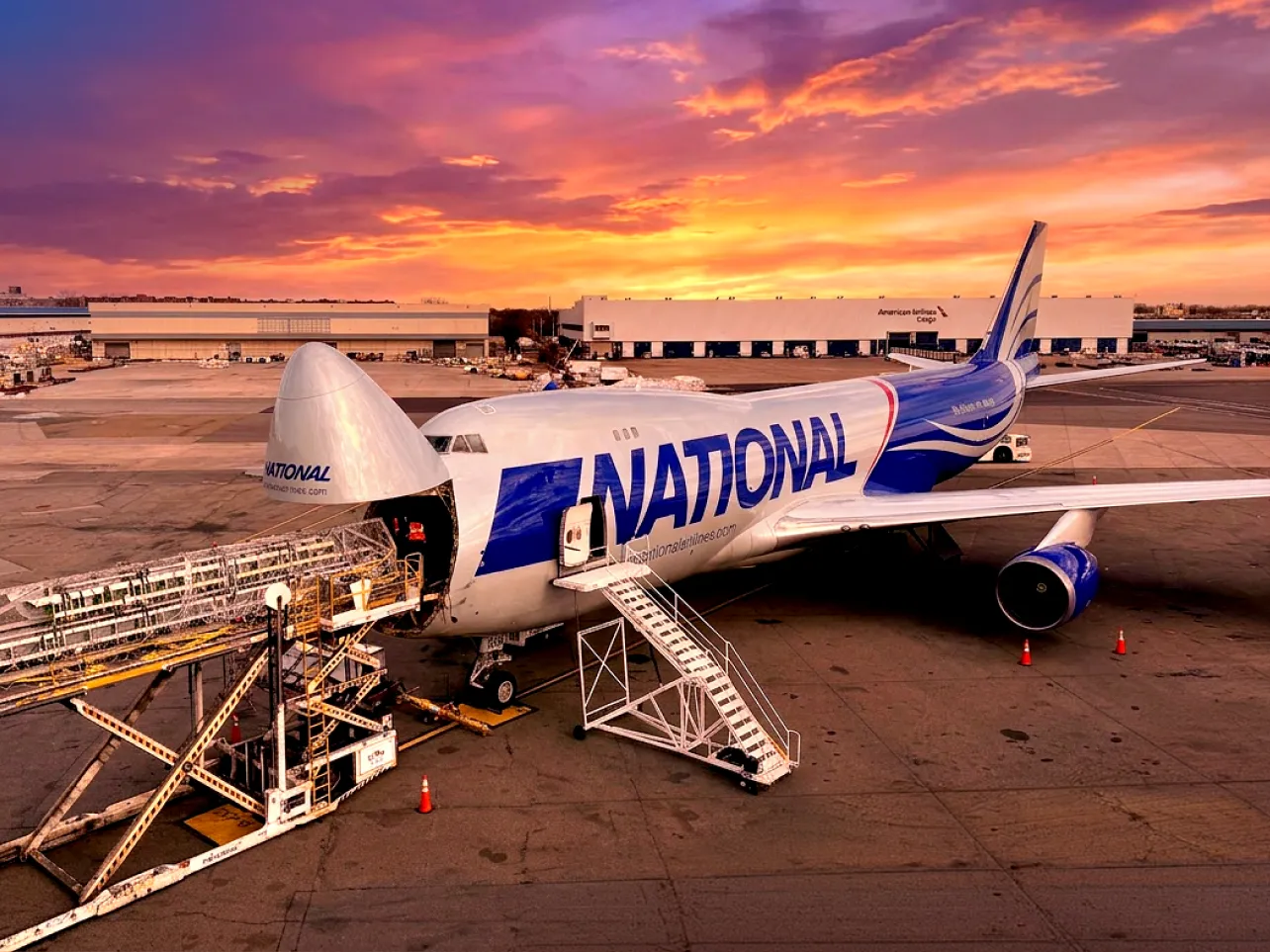

Cargo being loaded onto an airplane

Aircraft Specs

The numbers behind
the mission

This is the long-range 747 freighter. Higher fuel capacity, reinforced main-deck floor, and full freighter systems integration. Purpose-built for the cargo missions that need to go farther without stopping. Questions about what these numbers mean for your shipment? Your charter expert has the answers.

Eyebrow Label

Cargo payload (net/gross)*

265,656 lbs / 275,578 lbs

Max Gross Takeoff Weight

910,330 lbs

Max Gross Landing Weight

652,985 lbs

*Remember to include the weight of pallets, nets, and straps. These items convert your cargo’s net payload to its gross payload.

Eyebrow Label

Eyebrow Label

Cargo being loaded onto an airplane

Aircraft Specs

The numbers behind
the mission

This is the long-range 747 freighter. Higher fuel capacity, reinforced main-deck floor, and full freighter systems integration. Purpose-built for the cargo missions that need to go farther without stopping. Questions about what these numbers mean for your shipment? Your charter expert has the answers.

Eyebrow Label

Cargo payload (net/gross)*

120,500 kgs. / 125,000 kgs.

Max Gross Takeoff Weight

412,769 kgs.

Max Gross Landing Weight

296,195 kgs.

*Remember to include the weight of pallets, nets, and straps. These items convert your cargo’s net payload to its gross payload.

Eyebrow Label

Cargo Specs

What goes where. And how much of it.

Main-deck and lower-lobe cargo layouts with position counts, pallet compatibility, and compartment breakdowns. Your special loads expert can walk through alternatives for non-standard cargo.

A graphic showing the cargo layout for an airplane

Loadability

How it all fits

Seven pallet types on the main deck, including 463L military. Nine lower-deck positions forward and aft, plus an 852 ft³ bulk hold. 665 m³ of total cargo volume.


Main deck side door package length limitations

Width In.
102030405060708090100110120130134
Height In.Length In.
120470412367331302280259239219198179161
118470412367331302280259239219198179161144137
116495434386346314290268248228100110120151145
114536458404361326299277256237217196177158153
112546474417370334306282261242222202182163157
110573492429380342312287266246226207187168161
108600509441391350318293271251231212192173165
106600525455399356326297275254234215196176170
104600543468409363333303279258239219199181175
102600561481418373338309284263243224204185180
100600574492428378346313288267246227207188183
98600586505438386353318292270250230210192186
0-96600600517447395355323297275254232213196192


Nose door package dimension limitations

Tilted Loading
Height In.9690807060504030201284
Length In.106108113132140143143147148148151154

Loadability

How it all fits

Seven pallet types on the main deck, including 463L military. Nine lower-deck positions forward and aft, plus an 852 ft³ bulk hold. 665 m³ of total cargo volume.


Main deck side door package length limitations

Width In.
102030405060708090100110120130134
Height In.Length In.
120470412367331302280259239219198179161
118470412367331302280259239219198179161144137
116495434386346314290268248228100110120151145
114536458404361326299277256237217196177158153
112546474417370334306282261242222202182163157
110573492429380342312287266246226207187168161
108600509441391350318293271251231212192173165
106600525455399356326297275254234215196176170
104600543468409363333303279258239219199181175
102600561481418373338309284263243224204185180
100600574492428378346313288267246227207188183
98600586505438386353318292270250230210192186
0-96600600517447395355323297275254232213196192


Nose door package dimension limitations

Tilted Loading
Height In.9690807060504030201284
Length In.106108113132140143143147148148151154

Eyebrow Label

Eyebrow Label

Aircraft Details

The aircraft you call when the cargo won’t fit on anything else

Oil and gas equipment. Aerospace components. Oversized manufacturing machinery. The 747-400ERF exists for the shipments that other freighters have to turn down.

  • Nose-door loading accepts cargo of virtually any length, making this aircraft the go-to for oil and gas pipelines, wind turbine components, and aerospace assemblies
  • Purpose-built freighter airframe with a reinforced main-deck floor rated for concentrated heavy loads across 30 pallet positions
  • Certified for Hazmat, dangerous goods (DG), and ITAR-controlled shipments with full regulatory documentation
  • Extended range (4,970 nmi) reaches global energy, manufacturing, and defense hubs nonstop
  • Dedicated special loads team engineers custom loading solutions for non-standard cargo before your shipment arrives at the ramp
A solider standing near an airplane

cargo highlights

In its element

The 747-400ERF at work on the ramp. The freight speaks for itself.

  • Optional image caption. Lorem ipsum dolor sit amet, consectetur adipiscing elit.

    Eyebrow Label

    Frequently Asked Questions

    Questions we hear on every first call

    These come up in nearly every cargo charter conversation about the 747-400ERF. If yours isn’t listed, ask us. Your charter expert will track down the answer or connect you with someone on our team who can.

    We handle a wide range of cargo including aerospace components, defense equipment, industrial machinery, energy infrastructure, high-value, oversized, and dangerous goods (with proper documentation and compliance).

    Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

    Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

    Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
